Encrypted MAPI & SSL Optimisation – Riverbed

When optimizing encrypted MAPI traffic, normal encryption methods are maintained between the Outlook client and client-side Steelhead appliance, and the Exchange server and server-side Steelhead appliance.

To ensure the optimized MAPI connection between the two Steelhead appliances is also encrypted, configure RiOS Secure Inner Channel.  For detail, see the Steelhead Appliance Deployment Guide.

To enable Outlook Anywhere optimisation it requires HTTPs Optimisation and SSL certificates to be installed. Once installed this allows the Riverbed devices to establish a Secure Inner Channel connection as per the below, thus allowing optimisation to occur.

Encrypted Connections between Client and Server

RB1

To enable the Steelhead appliance to optimize encrypted MAPI traffic between Outlook and the Exchange Server:

  1. On the server-side Steelhead appliance, choose Configure > Networking > Windows Domain.
  2. Join the server-side Steelhead appliance to the same Windows domain that the Exchange server belongs to and operates as a member server.
  3. Verify that Outlook is encrypting traffic.
  4. Enable the Encrypted Optimization option on client-side and server-side Steelhead appliances involved in optimizing MAPI encrypted traffic. Alternatively, use the CLI command protocol mapi encrypted enable.
  5. Ensure that both Enable AMPI Exchange 2003 and Enable MAPI Exchange 2007 Acceleration are enabled. In RiOSv6.1 and later, by default, these options are enabled.
  6. Restart the service on all Steelhead appliances that have the Encrypted Optimisation option enabled.

To Configure Outlook Anywhere

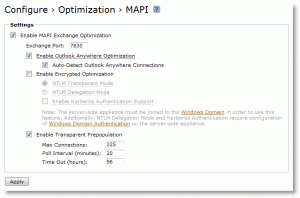

  1. Configure outlook Anywhere MAPI
    • On the client-side and Server-Side Steelhead Applicance, choose Configure > Optimisation > MAPI.
    • Select Enable Outlook Anywhere optimisation
    • Select Auto-Detect Outlook Anywhere Connections
    • Click Apply

RB2

Note: The corresponding CLI commands are [no] protocol mapi outlook-anywhr enable and [no] protocol mapi outlook-anywhr auto-detect.

  1. Configure an in-path rule for HTTPS connections to enable SSL Pre-optimisation only if the SH has not had port 443 removed from the port label Secure. Normally port 443 is removed as part of the simple SSL configuration. For more details, see Setting up a Simple SSL Deployment.

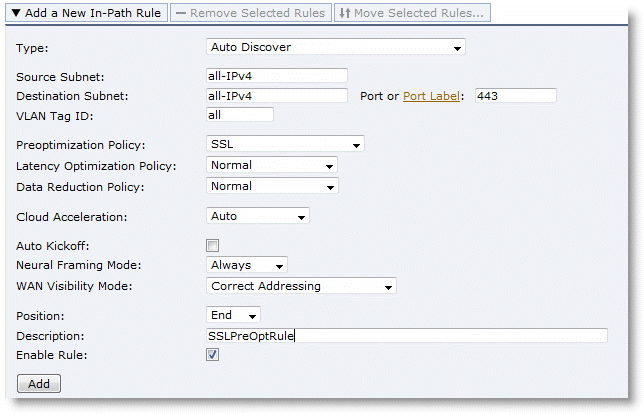

To configure an in-path rule for HTTPS connections:

  • Choose Configure > Optimization > In-Path Rules.
  • Select Add a New In-Path Rule.
  • Select Auto Discover from the Type drop-down list.
  • Specify port 443.
  • Select SSL from the Pre-optimization Policy drop-down list.
  • Click Add.

RB3

Note: You can configure an in-path rule for HTTPS connections to enable SSL preoptimisation through the CLI by entering in-path rule auto-discover preoptimization ssl dstport 443 rulenum end description SSLPreOptRule.

  1. Enable HTTP optimization the client-side and server-side Steelhead appliance. For details, see HTTP Optimisation.
  1. Enable SSL the client-side and server-side Steelhead appliance. The certificate and key from the Outlook Anywhere server must be installed on the server-side Steelhead appliance.
  • If you are using an internal CA, the CA root certificate must be installed.
  • If you are using encrypted MAPI you must enable secure inner channel. For details, see MAPI Optimization.

For some reason we have a duplication of Wildcard Cerficates, specifically for *.companyxyz.com.au

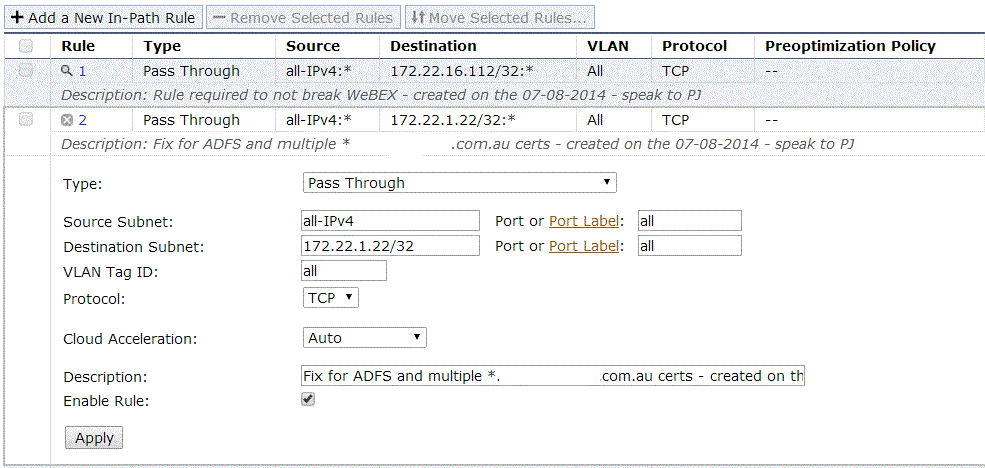

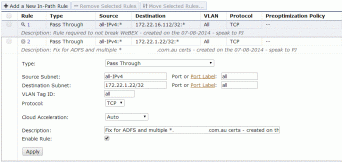

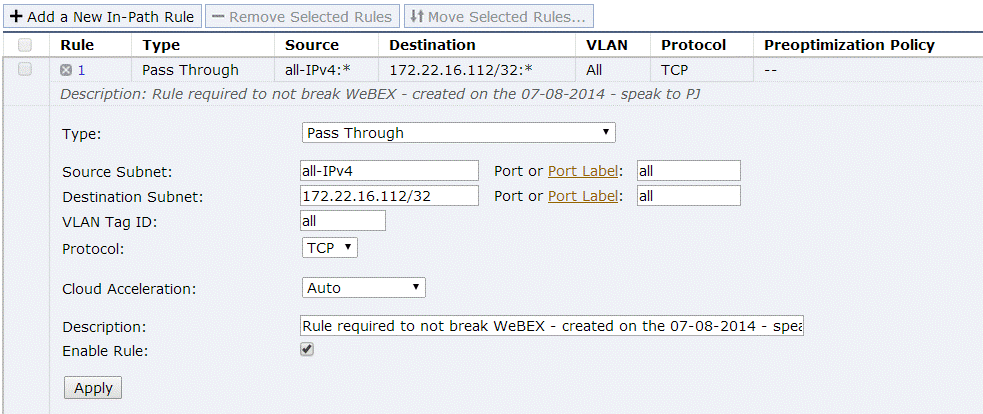

Due to this, it was necessary to create two additional rules on each client-side Steelhead deployment to ensure WebEx traffic and other ADFS traffic continued to work, albeit not optimised.

These rules are below.

RB4

RB5
